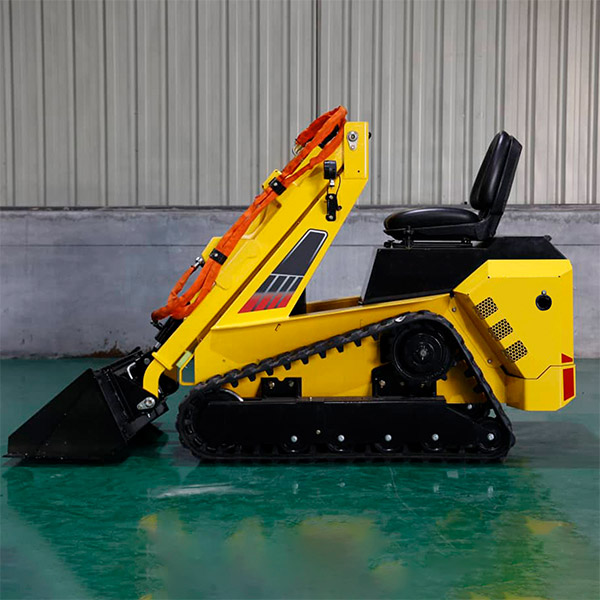

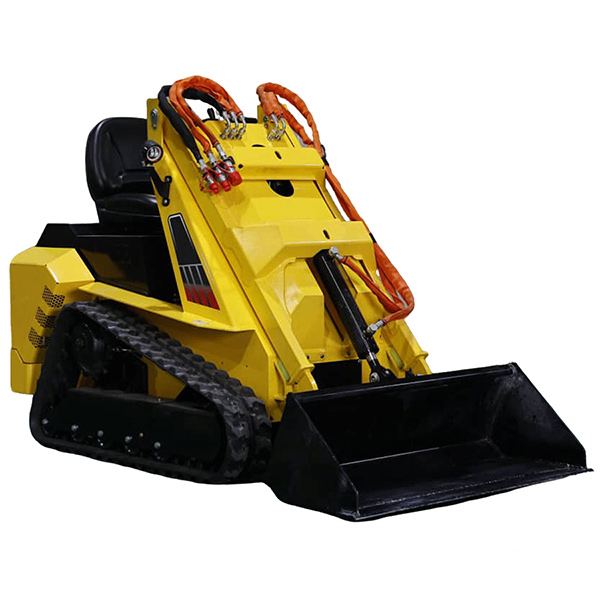

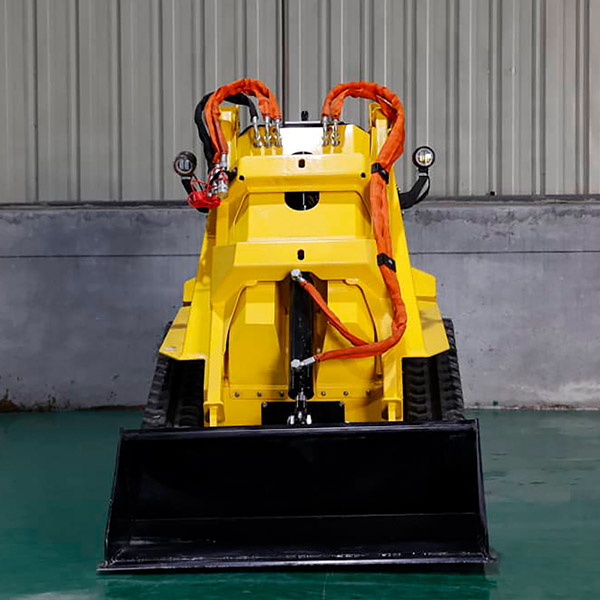

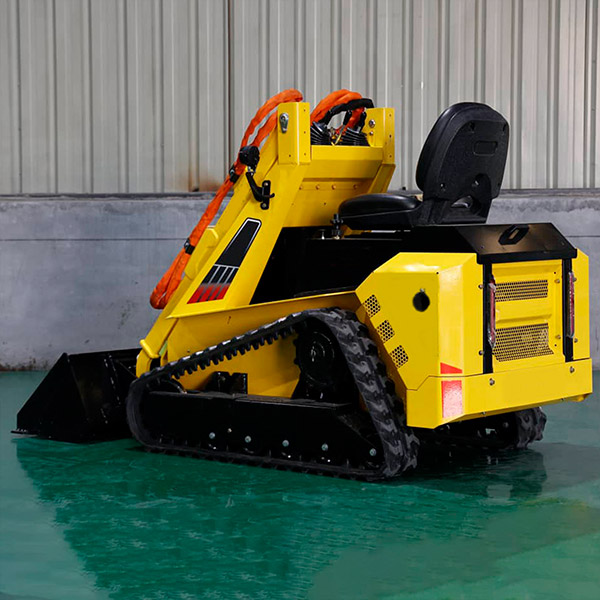

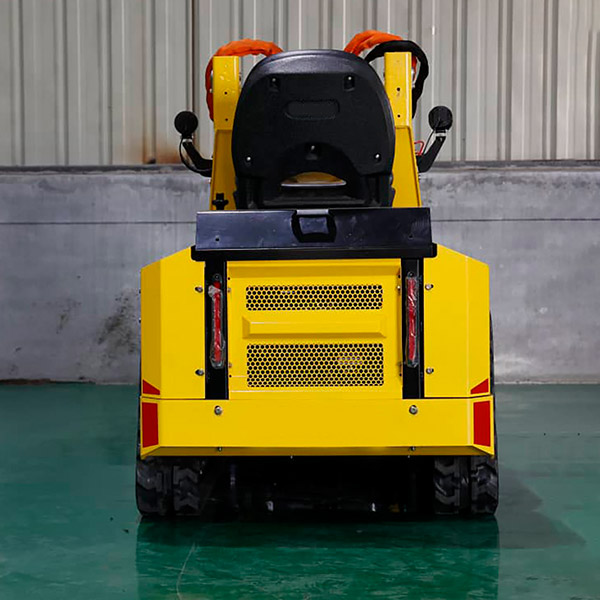

The 390T skid steer loader is a compact and efficient multi-functional machine designed for heavy-duty work in confined spaces. It combines flexible maneuverability with stable performance, making it suitable for landscaping, residential construction, and interior demolition.
Description
The 390T Skid Steer Loader is a versatile and efficient construction machine designed for heavy-duty material handling in extremely confined spaces. With an increased operating weight of 1000 kg, it offers enhanced stability and excellent maneuverability while maintaining a rated operating capacity of 300 kg, making it ideal for landscaping, residential construction, and interior demolition projects.
Powered by a selection of reliable engines from ROTO, Koop, or BRIGGS & STRATTON delivering 13.5 HP at 3600 rpm, this loader ensures high-torque performance and consistent power. Its advanced 20 MPa hydraulic system and dual 20L fuel and oil tanks provide precise control and extended operational life, meeting the demands of both professional contractors and the equipment rental market.
The ultra-compact chassis width of 1000 mm and a turning radius of 1660 mm allow the machine to navigate efficiently through narrow gates and restricted job sites. Despite its small footprint, it achieves a significant maximum working height of 2590 mm and a dump height of 2050 mm, ensuring high efficiency when loading trucks or moving materials in tight urban environments.
Key Advantages
Ultra-Compact Design for Narrow Access
-
Slim 1000 mm overall width allows for effortless passage through standard gates and narrow side-alleys.
-
Short 1615 mm chassis length (without bucket) enables operation in extremely confined urban job sites.
-
A tight 1660 mm turning radius ensures maximum agility in restricted environments.
Superior Stability & Ground Grip
-
Robust 1000 kg operating weight provides a low center of gravity for steady lifting.
-
Extended 1030 mm ground contact length improves traction and stability on soft or uneven terrain.
-
High 30° departure angle allows for easy loading onto ramps and navigation over obstacles.
Efficient Loading & Reach
-
Maximum working height of 2590 mm provides ample vertical reach for various attachments.
-
2050 mm dump height facilitates efficient loading into high-sided trailers or waste bins.
-
Large 1050 mm bucket width maximizes material volume moved per cycle.
Reliable & Maintenance-Friendly Power
-
Powered by world-class engine options including Briggs & Stratton or Koop, delivering a reliable 13.5 HP.
-
20 MPa high-pressure hydraulic system offers smooth, responsive power for demanding tasks.
-
Large 20L fuel and oil tanks reduce downtime by extending intervals between refueling.
Parameter
| Category | Parameter | Unit | Value |
| Performance | Operating weight | kg | 1000 |
| Rated operating capacity | kg | 300 | |
| Tipping load | kg | 500 | |
| Max. travel speed | km/h | 4 | |
| Engine & System | Engine Brand | – | ROTO / Koop / BRIGGS & STRATTON |
| Engine power | HP/rpm | 13.5 / 3600 | |
| System pressure | MPa | 20 | |
| Fuel / Oil tank capacity | L | 20 / 20 | |
| Dimensions | Overall height | mm | 1985 |
| Overall length (with bucket) | mm | 2105 | |
| Overall length (without bucket) | mm | 1615 | |
| Overall width | mm | 1000 | |
| Wheelbase (Track base) | mm | 790 | |
| Ground contact length | mm | 1030 | |
| Working Range | Overall working height | mm | 2590 |
| Dump height | mm | 2050 | |
| Dump reach | mm | 855 | |
| Bucket width | mm | 1050 |

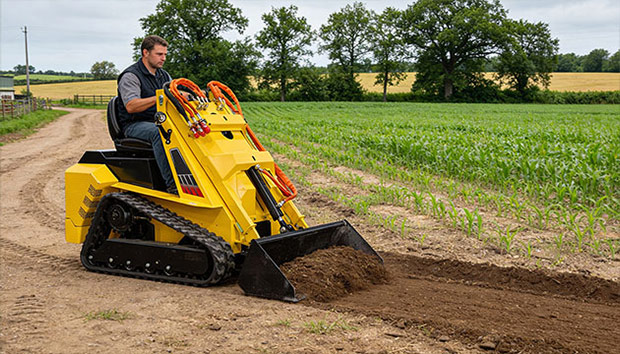

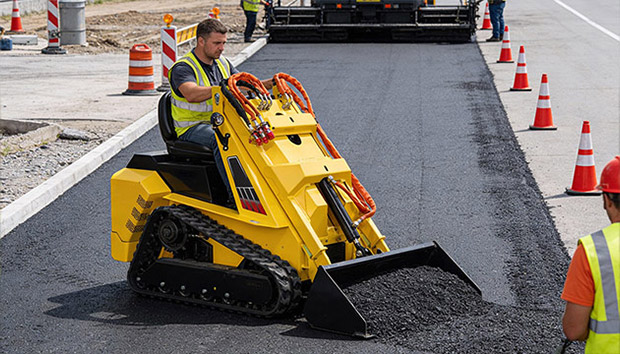

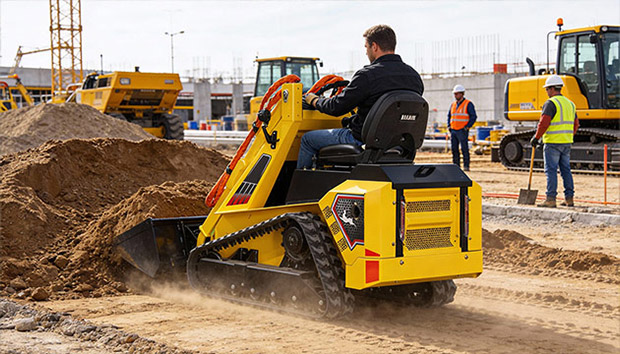

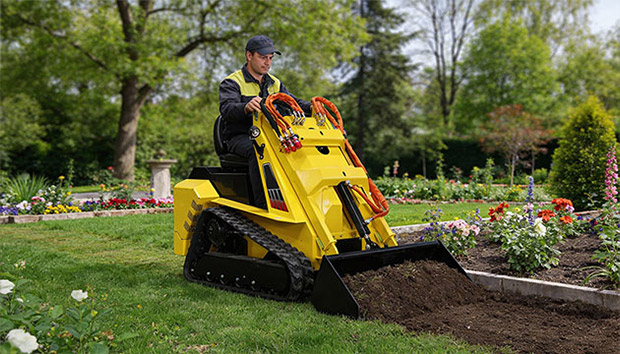

Application Scenarios
Stable Performance
High-quality construction ensures reliable operation under all working conditions.
Powerful Digging Force
Strong hydraulic system delivers efficient excavation and high productivity.
Wide Model Range
From mini to heavy excavators, for landscaping, municipal, roadwork, mining, and large projects.
Flexible Attachments
Compatible with buckets, grapples, breakers, and other tools to handle diverse tasks.
Durable & Easy Maintenance
Modular design and robust components reduce downtime and maintenance costs.
Global Standards
Manufactured to meet international safety, quality, and performance standards.
faq
Do you offer customized excavators?
Yes. We offer customization options including configurations, attachments, colors, and selected technical specifications to meet different working conditions.
What quality standards do your excavators meet?
Our excavators are manufactured according to international standards and undergo strict inspection before shipment.
What is your typical delivery time?
Standard models are delivered according to the confirmed production schedule. Delivery time depends on order quantity and customization requirements.
Do you provide after-sales service and technical support?
Yes. We provide technical guidance, spare parts support, and after-sales service to ensure long-term machine performance.
What attachments are compatible with your excavators?
Available attachments include various buckets, hydraulic breakers, grapples, and other tools for different applications.
Which countries do you export to?
Our excavators are exported to many countries, including the USA, Canada, Germany, France, the UK, Italy, Chile, and Ecuador.
How can I choose the right excavator model?
You can share your working conditions, application requirements, and budget, and our team will recommend the most suitable model.
Are your excavators suitable for long working hours?
Yes. Our excavators are built with durable structures and stable hydraulic systems, making them suitable for long and intensive working hours.
