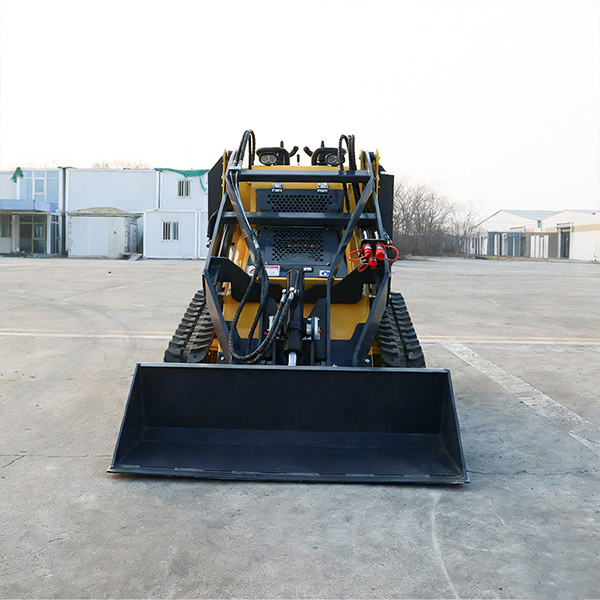

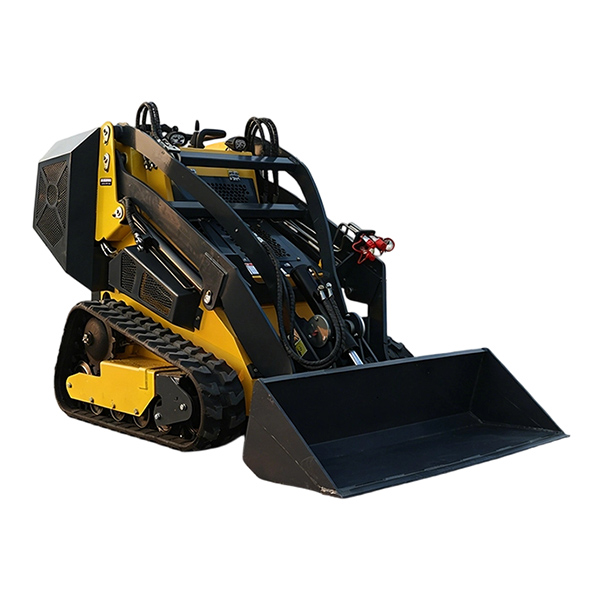

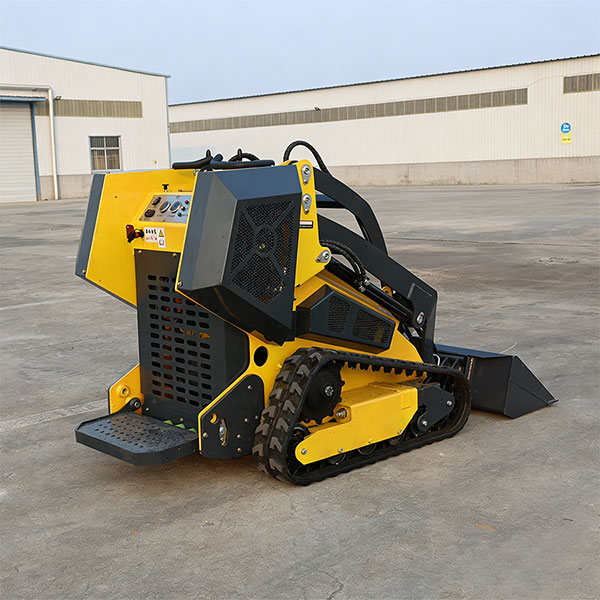

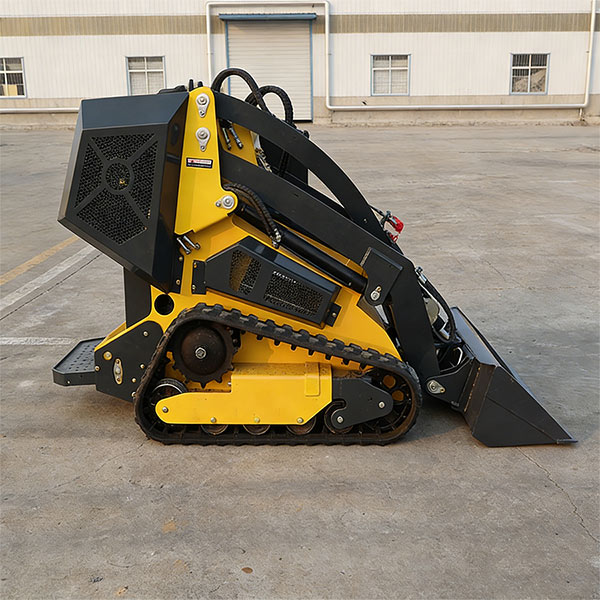

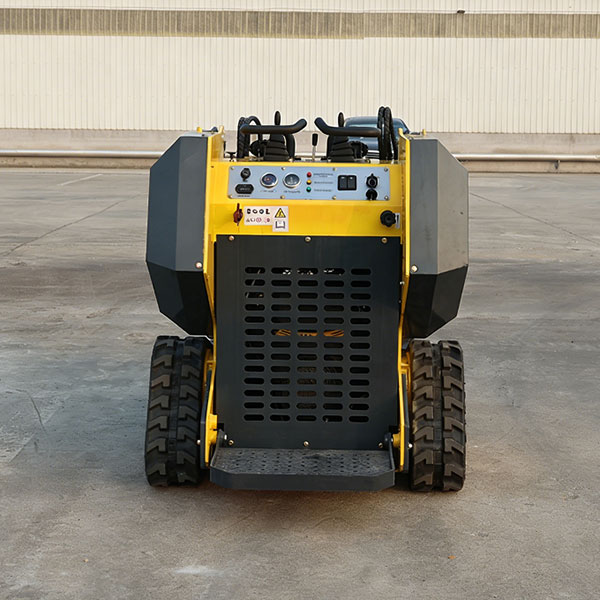

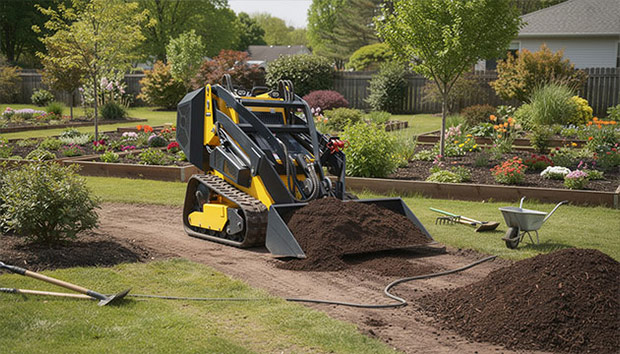

The 480T skid steer loader is a high-performance, multi-functional machine designed for heavy-duty work in confined spaces. It combines stability with flexible handling, making it suitable for landscaping, agriculture, and construction site preparation.
Description
The 480T Skid Steer Loader is a versatile and high-performance construction machine designed for demanding material handling tasks in confined spaces. With an operating weight of 1000 kg, it offers exceptional stability and maneuverability while maintaining a high rated load capacity of 390 kg (up to a maximum of 479 kg) for landscaping, agricultural projects, and site preparation.
Powered by a reliable 23 HP Runtong twin-cylinder engine, this loader ensures robust performance and smooth operation through its naturally aspirated design. Its optimized 17 MPa hydraulic system and 16L fuel tank provide consistent power and efficiency, making it a dependable choice for both professional contractors and industrial rental markets.
The compact chassis width of 1070 mm and a low tail length of 245 mm allow the machine to work efficiently in narrow job sites such as urban alleys, gardens, and indoor demolition areas. With a maximum operating height of 2703 mm and a dump height of 1750 mm, it delivers superior loading efficiency while remaining small enough for easy transport.
Key Advantages
Compact Performance for Restricted Areas
-
Narrow chassis width of 1070 mm and a low overall height of 1300 mm.
-
Ideal for maneuvering in tight urban environments and restricted job sites.
Enhanced Lifting & Loading Capacity
-
High rated load capacity of 390 kg with a 479 kg maximum limit.
-
Substantial 1750 mm dump height allows for efficient loading into trailers and waste containers.
-
Large $0.14 m^3$ bucket capacity maximizes productivity per cycle.
Reliable & Powerful Drivetrain
-
Equipped with a 23 HP Runtong twin-cylinder engine for high-torque performance.
-
Smooth travel speed ranging from 0 to 8 km/h for fast site navigation.
Operational Stability
-
Solid 1000 kg operating mass provides a balanced platform for heavy lifting.
-
120 mm ground clearance allows for stable operation on uneven ground.
Parameter
| Category | Parameter | Unit | Value |
| Performance | Operating weight | kg | 1000 |
| Rated load capacity | kg | 390 | |
| Maximum load capacity | kg | 479 | |
| Travel speed | km/h | 0–8 | |
| Engine & System | Engine Brand | – | Runtong |
| Rated Power | HP | 23 | |
| Number of cylinders | – | 2 | |
| Intake method | – | Naturally Aspirated | |
| System pressure | MPa | 17 | |
| Fuel tank capacity | L | 16 | |
| Dimensions | Overall width | mm | 1070 |
| Overall height | mm | 1300 | |
| Total length (with standard bucket) | mm | 2343 | |
| Total length (without bucket) | mm | 1812 | |
| Ground clearance | mm | 120 | |
| Tail length | mm | 245 | |
| Working Range | Max. operating height | mm | 2703 |
| Height to bucket pin | mm | 2180 | |
| Dump height | mm | 1750 | |
| Dump distance | mm | 280 | |
| Max. height at flat bucket | mm | 2013 | |
| Max. height discharge angle | ° | 45 | |
| Bucket capacity | m | 0.14 |

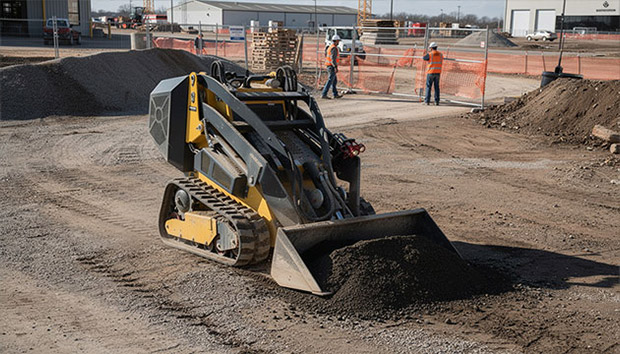

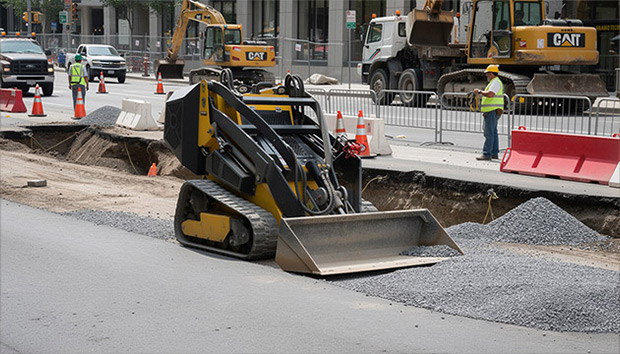

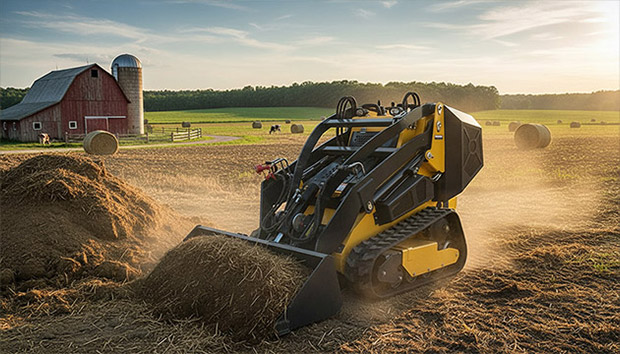

Application Scenarios
Stable Performance
High-quality construction ensures reliable operation under all working conditions.
Powerful Digging Force
Strong hydraulic system delivers efficient excavation and high productivity.
Wide Model Range
From mini to heavy excavators, for landscaping, municipal, roadwork, mining, and large projects.
Flexible Attachments
Compatible with buckets, grapples, breakers, and other tools to handle diverse tasks.
Durable & Easy Maintenance
Modular design and robust components reduce downtime and maintenance costs.
Global Standards
Manufactured to meet international safety, quality, and performance standards.
faq
Do you offer customized excavators?
Yes. We offer customization options including configurations, attachments, colors, and selected technical specifications to meet different working conditions.
What quality standards do your excavators meet?
Our excavators are manufactured according to international standards and undergo strict inspection before shipment.
What is your typical delivery time?
Standard models are delivered according to the confirmed production schedule. Delivery time depends on order quantity and customization requirements.
Do you provide after-sales service and technical support?
Yes. We provide technical guidance, spare parts support, and after-sales service to ensure long-term machine performance.
What attachments are compatible with your excavators?
Available attachments include various buckets, hydraulic breakers, grapples, and other tools for different applications.
Which countries do you export to?
Our excavators are exported to many countries, including the USA, Canada, Germany, France, the UK, Italy, Chile, and Ecuador.
How can I choose the right excavator model?
You can share your working conditions, application requirements, and budget, and our team will recommend the most suitable model.
Are your excavators suitable for long working hours?
Yes. Our excavators are built with durable structures and stable hydraulic systems, making them suitable for long and intensive working hours.
