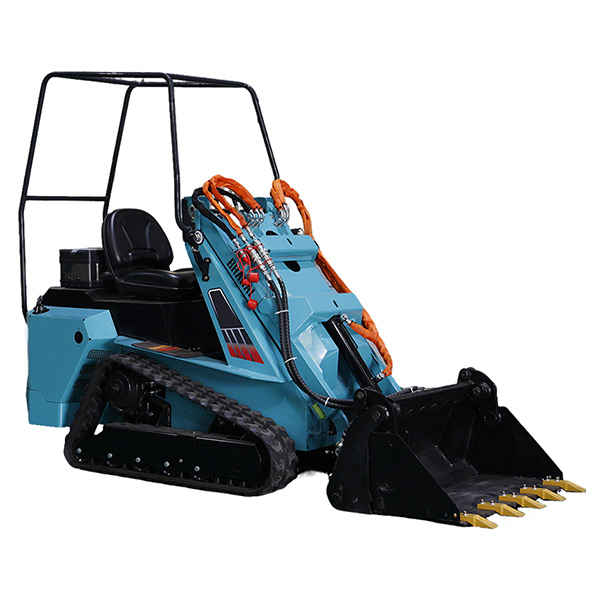

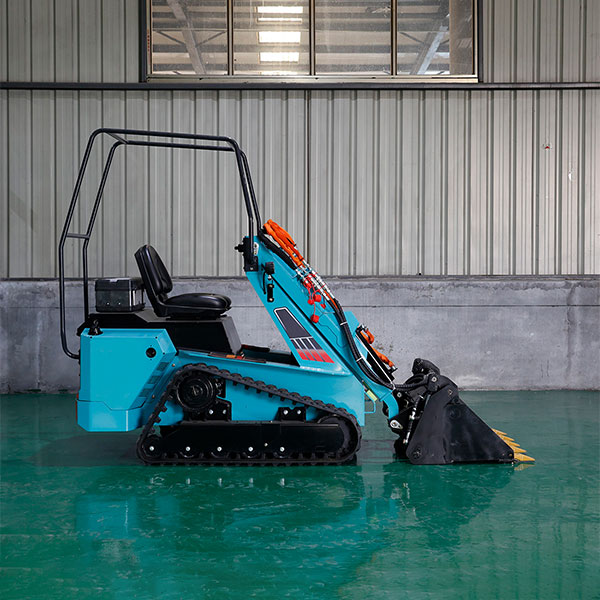

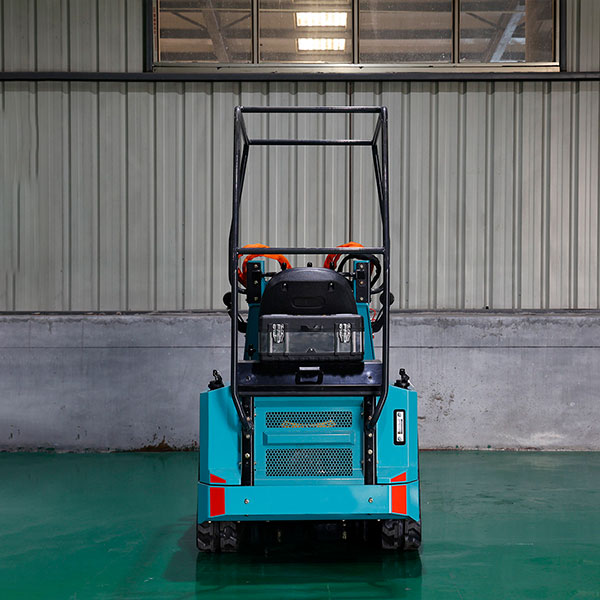

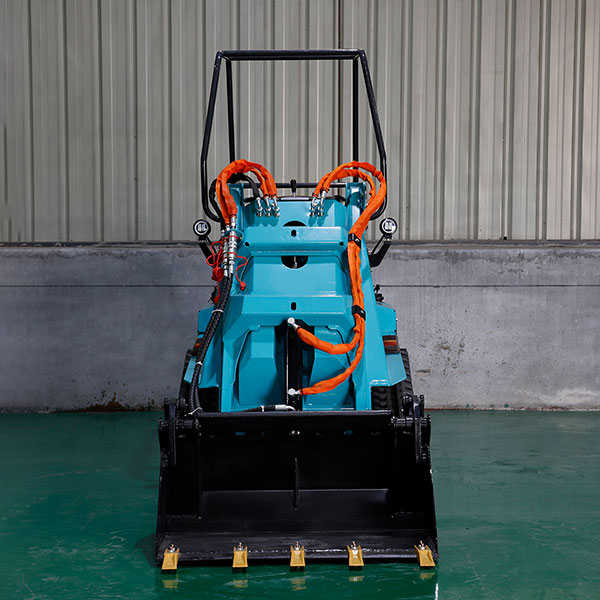

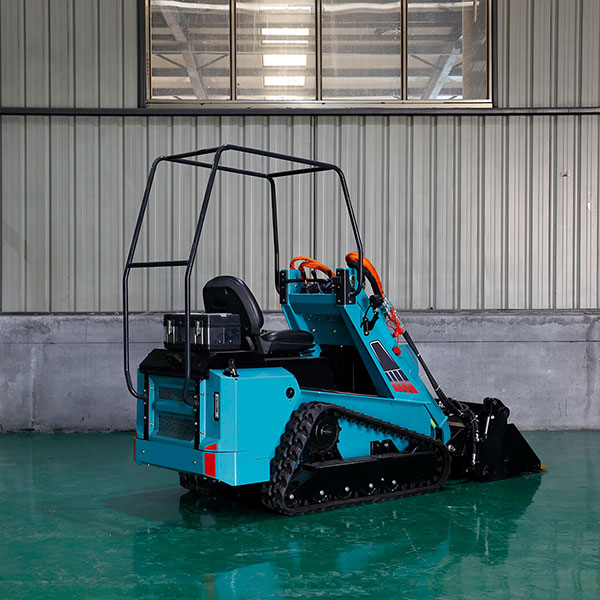

The 490T skid steer loader is a high-performance, multi-functional machine designed for heavy-duty work in confined spaces. It combines flexible maneuverability with powerful lifting capabilities, making it suitable for landscaping, construction in tight areas, and agricultural applications.
Description
The 490T Skid Steer Loader is a versatile and high-performance machine engineered for demanding material handling tasks in restricted environments. With a robust operating weight of 1,100 kg and a rated operating capacity of 430 kg, it strikes the perfect balance between agile maneuverability and heavy-lifting power, making it an ideal choice for landscaping, narrow-access construction, and agricultural applications.
The machine offers exceptional versatility with multiple engine options, including ROTO, Koop, and Briggs & Stratton, delivering a powerful 16.8 kW output at 3,600 rpm. This powertrain, combined with a 20 MPa hydraulic system, ensures smooth, responsive control and the durability needed for consistent daily operation. Its high-efficiency design is supported by dual 20L fuel and hydraulic tanks, allowing for extended work cycles with minimal downtime.
Designed for tight job sites, the loader features a slim 1,000 mm chassis width and a compact front turning radius of 1,660 mm, allowing it to navigate through standard gates and narrow corridors with ease. Despite its small footprint, it delivers impressive vertical reach with a max working height of 2,590 mm and a dump height of 2,050 mm, ensuring effortless loading into trucks and high-walled containers.
Key Advantages
Ultra-Compact Design for Narrow Access
-
Slim 1000 mm chassis width allows for easy passage through standard doorways and tight gates.
-
Front turning radius of 1660 mm ensures exceptional maneuverability in confined indoor or garden job sites.
-
1050 mm bucket width perfectly matches the machine body for precise edge-to-edge clearing.
High-Reach Loading & Dumping Performance
-
Impressive dump height of 2050 mm allows for efficient loading into high-sided trucks and waste containers.
-
Maximum working height of 2590 mm provides superior vertical reach for stacking and lifting.
-
855 mm dump reach ensures the machine can discharge materials safely away from the chassis.
Powerful & Flexible Engine Options
-
High-power 16.8 kW output (3600 rpm) delivers nearly double the strength of standard mini excavators for heavy lifting.
-
Versatile engine configurations featuring Briggs & Stratton, Koop, or ROTO to meet different regional emissions and maintenance needs.
-
20 MPa system pressure provides the hydraulic force required for demanding attachments and high-speed operation.
Robust Lifting & Stability
-
Heavy-duty 1100 kg operating weight provides a stable platform for a 430 kg rated capacity.
-
1030 mm track ground contact length ensures steady traction and weight distribution on soft or uneven terrain.
-
30° maximum departure angle and 190 mm ground clearance allow the machine to navigate slopes and obstacles with ease.
Optimized for Productivity
-
Generous 20L fuel and hydraulic tanks support long working hours with fewer refueling stops.
-
107° bucket rollback angle ensures excellent material retention during transport, reducing spillages.
-
4 km/h travel speed enables quick transitions between different areas of the job site.
Parameter
| Category | Item | Unit | Value |
| Performance | Operating Weight | kg | 1100 |
| Rated Operating Capacity | kg | 430 | |
| Tipping Load | kg | 550 | |
| Max. Travel Speed | km/h | 4 | |
| Engine | Engine Brand | – | ROTO / Koop / BRIGGS&STRATTON |
| Engine Power | kW / rpm | 16.8 / 3600 | |
| System | System Pressure | MPa | 20 |
| Fuel Tank Capacity | L | 20 | |
| Oil Tank Capacity | L | 20 | |
| Working Dimensions | Max. Working Height | mm | 2590 |
| Max. Pin Height (Bucket Pivot) | mm | 2590 | |
| Dump Height | mm | 2050 | |
| Dump Reach (Distance from machine) | mm | 855 | |
| Dump Angle | ° | 25 | |
| Max. Bucket Rollback Angle (on ground) | ° | 107 | |
| Max. Bucket Angle (at ground level) | ° | 19 | |
| Overall Dimensions | Overall Height | mm | 1985 |
| Overall Width | mm | 1000 | |
| Bucket Width | mm | 1050 | |
| Overall Length (with bucket) | mm | 2365 | |
| Overall Length (without bucket) | mm | 1875 | |
| Track Ground Length | mm | 1030 | |
| Wheel Track | mm | 790 | |
| Max. Ground Clearance | mm | 190 | |
| Max. Departure Angle | ° | 30 | |
| Max. Turning Radius (Front) | mm | 1660 |

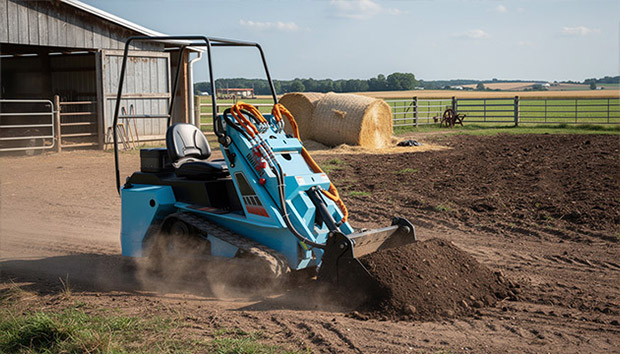

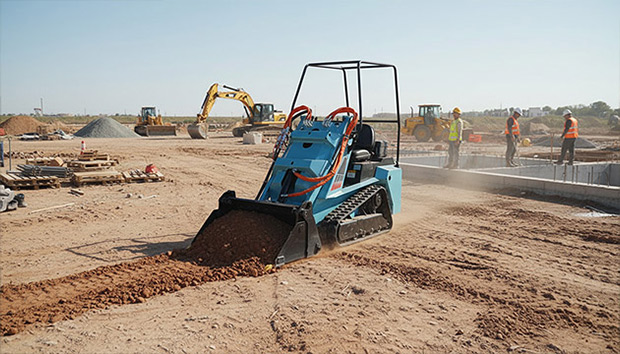

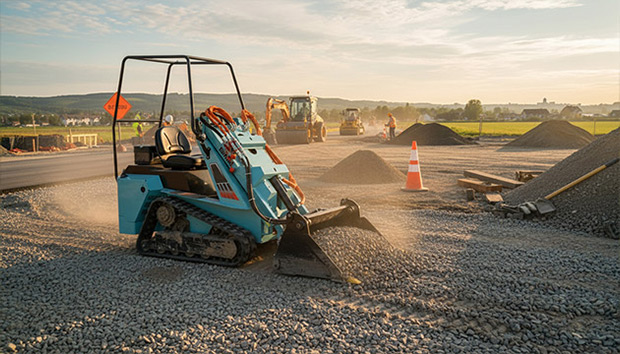

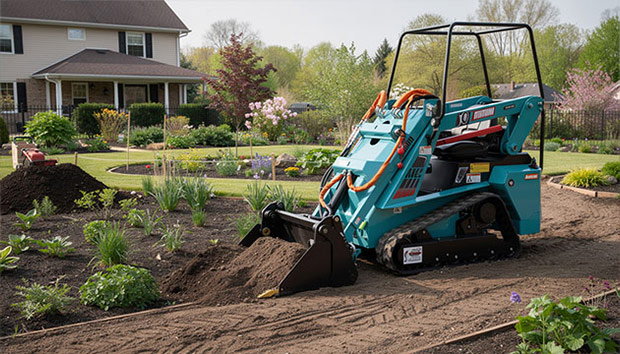

Application Scenarios
Stable Performance
High-quality construction ensures reliable operation under all working conditions.
Powerful Digging Force
Strong hydraulic system delivers efficient excavation and high productivity.
Wide Model Range
From mini to heavy excavators, for landscaping, municipal, roadwork, mining, and large projects.
Flexible Attachments
Compatible with buckets, grapples, breakers, and other tools to handle diverse tasks.
Durable & Easy Maintenance
Modular design and robust components reduce downtime and maintenance costs.
Global Standards
Manufactured to meet international safety, quality, and performance standards.
faq
Do you offer customized excavators?
Yes. We offer customization options including configurations, attachments, colors, and selected technical specifications to meet different working conditions.
What quality standards do your excavators meet?
Our excavators are manufactured according to international standards and undergo strict inspection before shipment.
What is your typical delivery time?
Standard models are delivered according to the confirmed production schedule. Delivery time depends on order quantity and customization requirements.
Do you provide after-sales service and technical support?
Yes. We provide technical guidance, spare parts support, and after-sales service to ensure long-term machine performance.
What attachments are compatible with your excavators?
Available attachments include various buckets, hydraulic breakers, grapples, and other tools for different applications.
Which countries do you export to?
Our excavators are exported to many countries, including the USA, Canada, Germany, France, the UK, Italy, Chile, and Ecuador.
How can I choose the right excavator model?
You can share your working conditions, application requirements, and budget, and our team will recommend the most suitable model.
Are your excavators suitable for long working hours?
Yes. Our excavators are built with durable structures and stable hydraulic systems, making them suitable for long and intensive working hours.
