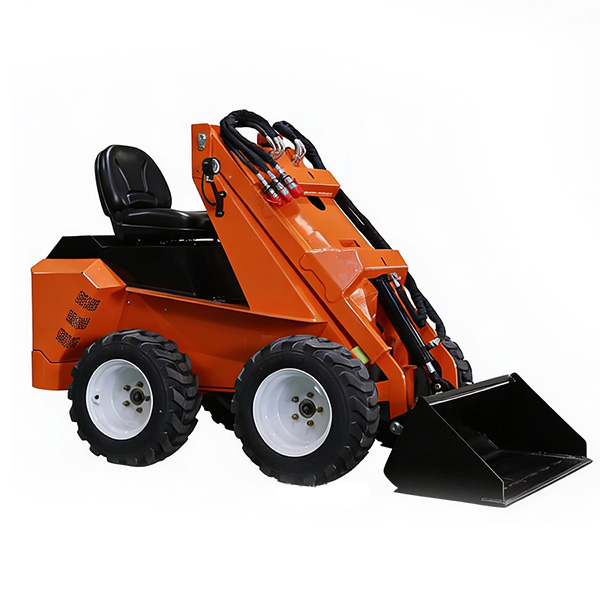

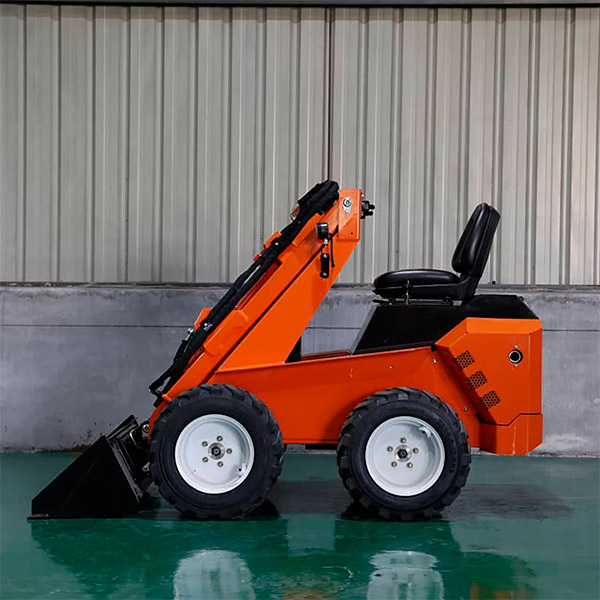

The 390W skid steer loader is a compact and efficient multi-functional construction machine designed for heavy-duty work in confined spaces. It combines powerful performance with flexible handling, making it suitable for landscaping, construction, and agricultural applications.
Description
The 390W Skid Steer Loader is a versatile and high-performance machine engineered for heavy-duty material handling in extremely confined environments. With a robust operating weight of 950 kg and a rated operating capacity of 300 kg, it strikes the perfect balance between compact design and lifting power, making it an ideal choice for landscaping, narrow-access construction, and agricultural applications.
Available with reliable powerplants from ROTO, Koop, or Briggs & Stratton, this loader delivers a punchy 13.5 HP at 3600 rpm. This powertrain, combined with a 20 MPa hydraulic system, ensures smooth operation and a respectable travel speed of 8.5 km/h. Designed for endurance, it features dual 20L fuel and hydraulic tanks to maximize uptime during long shifts.
The machine is specifically optimized for tight spaces, featuring a chassis width of just 1100 mm and an impressive turning radius of 1660 mm. Despite its small footprint, it offers a significant working height of 2715 mm and a dump height of 2173 mm, allowing it to easily load high-sided trucks or hoppers. With a 320 mm ground clearance and a 30° departure angle, this loader navigates uneven terrain with ease, providing professional contractors with a reliable, multi-purpose workhorse for any job site.
Key Advantages
Key Advantages
High Lift & Reach Capabilities
-
Impressive maximum working height of 2715 mm for superior overhead reach
-
Dump height of 2173 mm allows for easy loading into high-sided trucks and trailers
-
825 mm dump reach ensures precise material placement
Compact Agility for Restricted Sites
-
Narrow 1100 mm chassis width allows for operation in tight hallways and garden gates
-
Tight 1660 mm turning radius provides exceptional maneuverability in confined spaces
-
Compact 1625 mm length (without bucket) simplifies transportation between job sites
Reliable & Versatile Power System
-
Available with premium Briggs & Stratton, Koop, or ROTO engines for proven durability
-
13.5 HP output delivers high torque for demanding lifting and pushing tasks
-
Integrated 20 MPa hydraulic system ensures smooth, responsive control of attachments
Heavy-Duty Performance in a Mini Frame
-
Solid 950 kg operating weight provides a stable platform for lifting
-
300 kg rated operating capacity handles heavy materials with ease
-
500 kg tipping load ensures safety and stability during maximum extension
All-Terrain Maneuverability
-
High 320 mm ground clearance for navigating over obstacles and debris
-
Aggressive 30° departure angle prevents bottoming out on steep slopes or ramps
-
Efficient 8.5 km/h travel speed increases productivity across larger work areas
Parameter
| Category | Parameter | Unit | Value |
| Performance | Operating weight | kg | 950 |
| Rated operating capacity | kg | 300 | |
| Tipping load | kg | 500 | |
| Max. travel speed | km/h | 8.5 | |
| Engine & System | Engine Brand | – | ROTO / Koop / BRIGGS & STRATTON |
| Engine power | HP/rpm | 13.5 / 3600 | |
| System pressure | MPa | 20 | |
| Fuel tank capacity | L | 20 | |
| Oil tank capacity | L | 20 | |
| Dimensions | Overall height | mm | 2115 |
| Overall length (with bucket) | mm | 2165 | |
| Overall length (without bucket) | mm | 1625 | |
| Overall width | mm | 1100 | |
| Wheelbase | mm | 936 | |
| Max. ground clearance | mm | 320 | |
| Working Range | Overall working height | mm | 2715 |
| Dump height | mm | 2173 | |
| Dump reach | mm | 825 | |
| Max. pin height | mm | 2715 | |
| Bucket width | mm | 1050 | |
| Max. turning radius | mm | 1660 | |
| Angles | Departure angle | ° | 30 |
| Bucket max. rollback angle | ° | 22 | |
| Dump angle | ° | 17 | |
| Max. bucket tilt angle | ° | 111 |

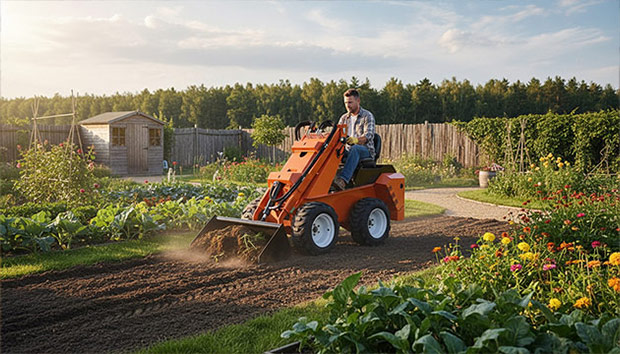

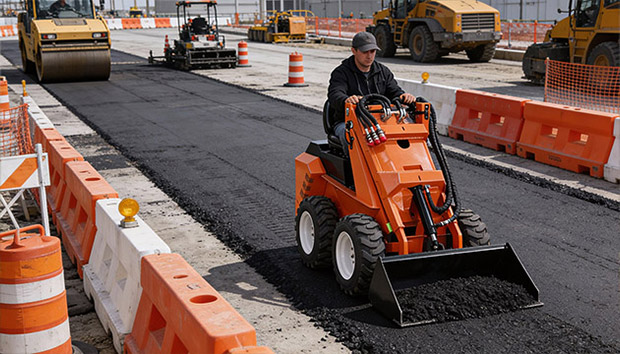

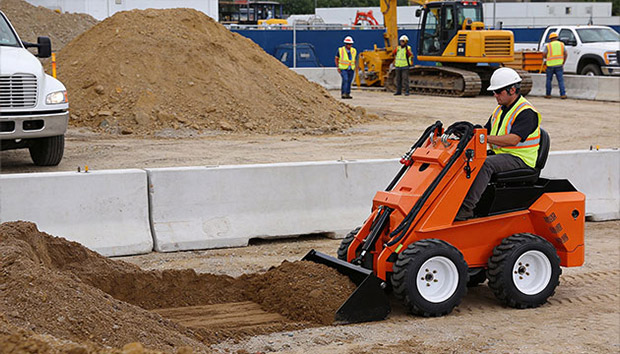

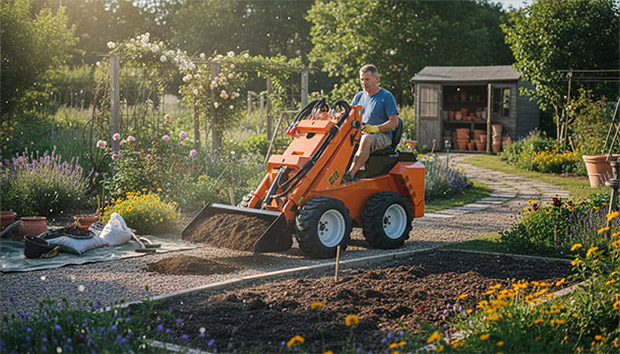

Application Scenarios
Stable Performance
High-quality construction ensures reliable operation under all working conditions.
Powerful Digging Force
Strong hydraulic system delivers efficient excavation and high productivity.
Wide Model Range
From mini to heavy excavators, for landscaping, municipal, roadwork, mining, and large projects.
Flexible Attachments
Compatible with buckets, grapples, breakers, and other tools to handle diverse tasks.
Durable & Easy Maintenance
Modular design and robust components reduce downtime and maintenance costs.
Global Standards
Manufactured to meet international safety, quality, and performance standards.
faq
Do you offer customized excavators?
Yes. We offer customization options including configurations, attachments, colors, and selected technical specifications to meet different working conditions.
What quality standards do your excavators meet?
Our excavators are manufactured according to international standards and undergo strict inspection before shipment.
What is your typical delivery time?
Standard models are delivered according to the confirmed production schedule. Delivery time depends on order quantity and customization requirements.
Do you provide after-sales service and technical support?
Yes. We provide technical guidance, spare parts support, and after-sales service to ensure long-term machine performance.
What attachments are compatible with your excavators?
Available attachments include various buckets, hydraulic breakers, grapples, and other tools for different applications.
Which countries do you export to?
Our excavators are exported to many countries, including the USA, Canada, Germany, France, the UK, Italy, Chile, and Ecuador.
How can I choose the right excavator model?
You can share your working conditions, application requirements, and budget, and our team will recommend the most suitable model.
Are your excavators suitable for long working hours?
Yes. Our excavators are built with durable structures and stable hydraulic systems, making them suitable for long and intensive working hours.
