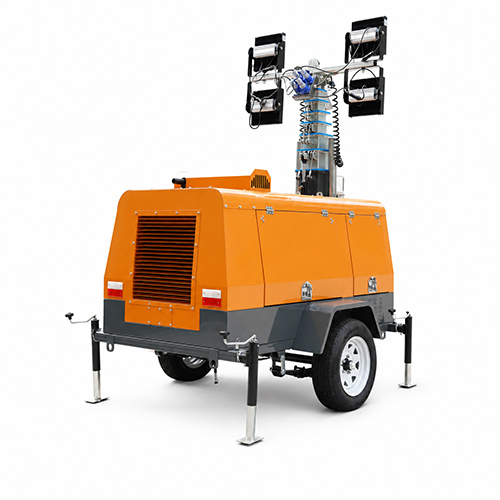

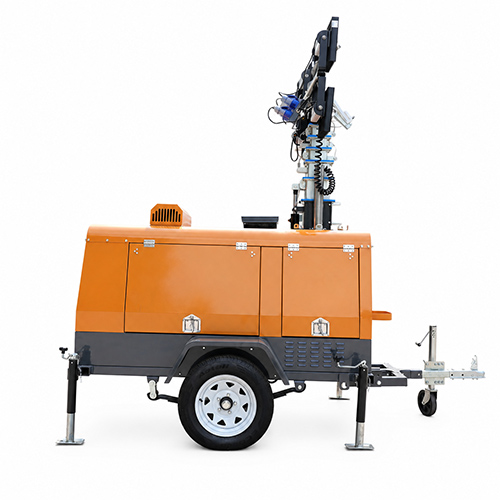

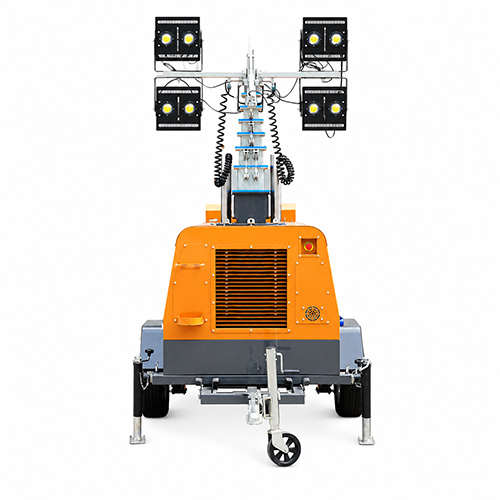

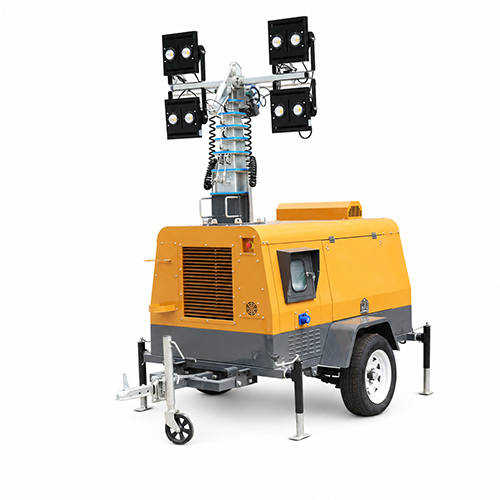

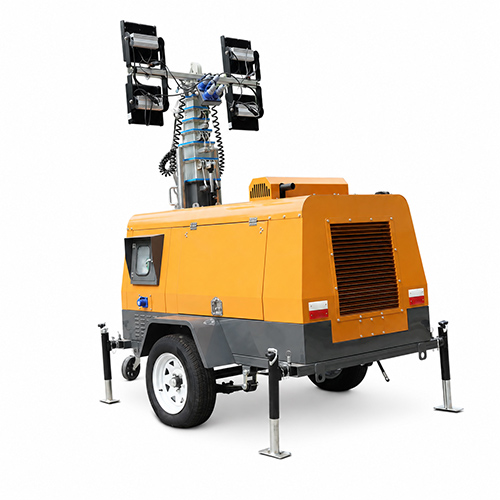

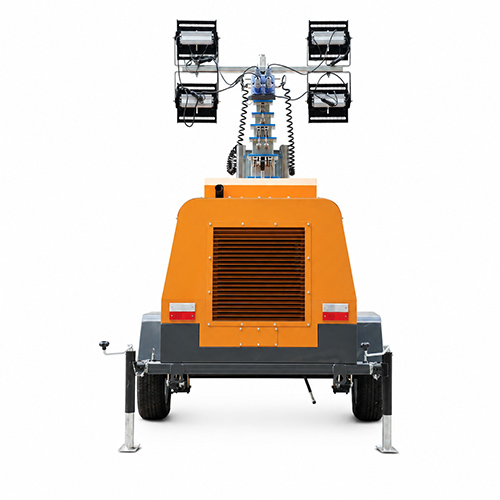

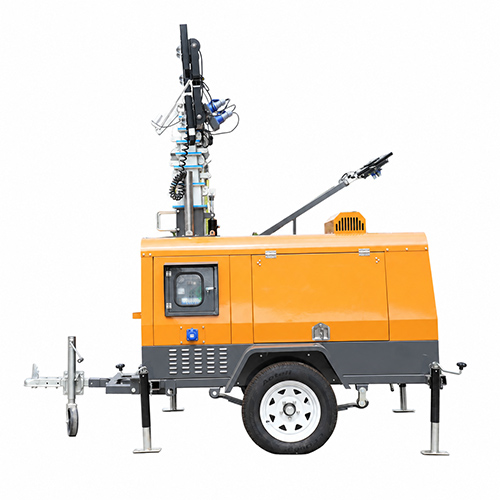

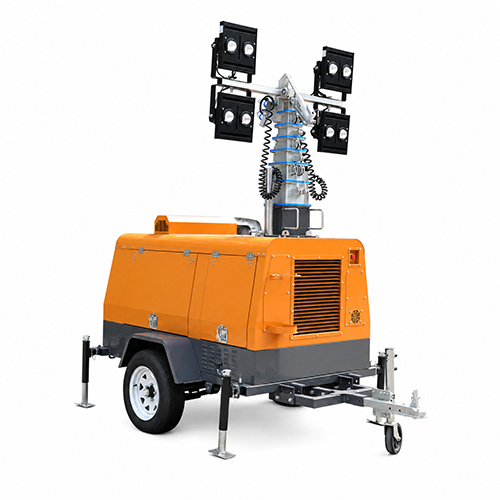

FEATURES
- Equipped with imported power unit, reliable quality and superior performance
- Fitted with energy-saving LED lamps featuring high luminous flux and long service life
- Intelligent unit control system with one-touch start function
- 8-section galvanized lifting mast, anti-fall and corrosion-resistant
- Four wind-resistant mechanical telescopic outriggers for stable support
- Self-locking lamp mast with 330° rotation for wide-range multi-directional illumination
- Maximum lifting height of 9 meters; electrically adjustable lighting angle for long irradiation distance
| Item | Unit | Specification |
|---|---|---|
| Overall Length (Mast Extended / Retracted) | mm | 4100/3600 |
| Overall Width (Mast Extended / Retracted) | mm | 2400/1670 |
| Overall Height | mm | 2480 |
| Max. Lifting Height | m | 9 |
| Tire & Rim Size | inch | 14 |
| Item | Unit | Kubota/YANMAR | Changchai |
|---|---|---|---|
| Engine Brand | — | Kubota/YANMAR | Changchai |
| Engine Model | — | D1105/3TNV76 | 3M78/CZ380Q |
| Engine Type | — | 3-cylinder, water-cooled, 4-stroke | 3-cylinder, water-cooled, 4-stroke |
| Power | kw | 12.6/10.7 | 11.5/14.3 |
| Rotating Speed | rpm | 1500 | 1500 |
| Lifting Mode | — | Hydraulic Lifting | Hydraulic Lifting |
| Air Intake Mode | — | Naturally Aspirated | Naturally Aspirated |
| Emission Standard | — | Conventional | Conventional |
| Standard Generator | — | SPARKS | SPARKS |
| Rated Voltage (50/60Hz) | V | 230/240–120 | 230/240–120 |
| Motor Insulation Class | — | CLASS H | CLASS H |
| Motor Protection Class | — | IP65 | IP65 |
| Main Lamp Type | — | Metal Halide Lamp | LED Lamp |
| Lamp Power & Quantity | w | 1000×4 | 400×4 |
| Luminous Flux | lm | 440000 | 224000 |
| Mast Sections | Sections | 8 | 8 |
| Fuel Tank Capacity | L | 90 | 90 |
| Continuous Working Time | h | 65 | 65 |
| Unit Starting Mode | — | Computerized System Start | Computerized System Start |
| Maximum Wind Resistance Speed | m/s | 20 | 20 |
| Noise Level | dB | 72 at 7 meters | 72 at 7 meters |
| Suspension & Brake | — | Leaf spring suspension, single axle without brake | Leaf spring suspension, single axle without brake |
| Drawbar | — | Equipped with retractable adjustable guide wheel lever | Equipped with retractable adjustable guide wheel lever |
| Max. Extended Height | m | 9 | 9 |
| Tire Size | inch | 14 | 14 |
| Maximum Towing Speed | km/h | 80 | 80 |
| Overall Length (Mast Extended / Retracted) | mm | 4100/3600 | 4100/3600 |
| Overall Width (Mast Extended / Retracted) | mm | 2400/1670 | 2400/1670 |
| Overall Height | mm | 2480 | 2480 |
| Weight | kg | 1360 | 1360 |
Reliable Performance
Stable performance across all working conditions for efficient, consistent operation.
Durable Construction
Reinforced frame & premium parts extend service life.
Wide Product Selection
Full lineup: construction, landscaping, road compaction & mobile lighting gear for diverse industries.
Flexible Configuration
Customizable models, power, capacity, color and specs per project demands.
Easy Operation and Maintenance
User-friendly controls & accessible service points simplify operation and daily upkeep.
Professional Export Support
One-stop export service: selection, quotation, logistics, documents & aftersales.
faq
What information should I provide when requesting a quotation?
Please provide the required product, application, working conditions, quantity, destination country, preferred configuration and any certification or customization requirements. This information helps us prepare a more accurate recommendation and quotation.
How can I choose the right machine model?
You can send us your application, working environment, required capacity, preferred power type, operating time, quantity and budget. Our team will compare suitable models and recommend an appropriate configuration.
Do you provide customized machinery?
Yes. Depending on the product and order quantity, we can provide selected customization options such as machine color, logo, power system, working capacity, attachments, electrical specifications, packaging and other configurations.
Do you support OEM and ODM orders?
Yes. OEM and ODM services are available for qualified orders. Available customization depends on the product model, technical feasibility and order quantity.
How do you control product quality?
Raw materials, structural components, power systems, electrical parts and machine functions are inspected during production. The completed machine is also checked according to the confirmed order before packaging and shipment.
What certifications are available?
Certification availability depends on the product model and destination market. Selected models may support CE, EPA or other compliance documents. Please contact our team to confirm the exact certification available for your selected machine.
What is your typical delivery time?
Delivery time depends on the product model, order quantity, production schedule and customization requirements. Standard configurations can generally be prepared faster than customized machines. The estimated delivery schedule will be confirmed before the order is placed.
Do you provide operation manuals and technical guidance?
Yes. Available support may include operation manuals, maintenance guidance, product videos, remote technical communication and basic troubleshooting assistance.
