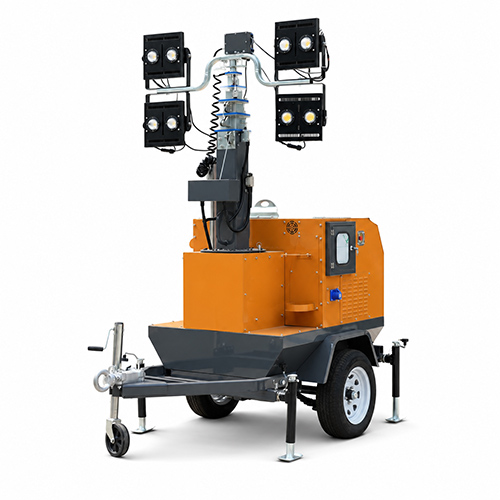

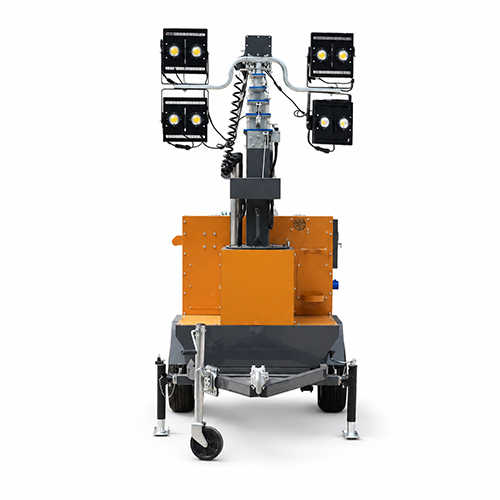

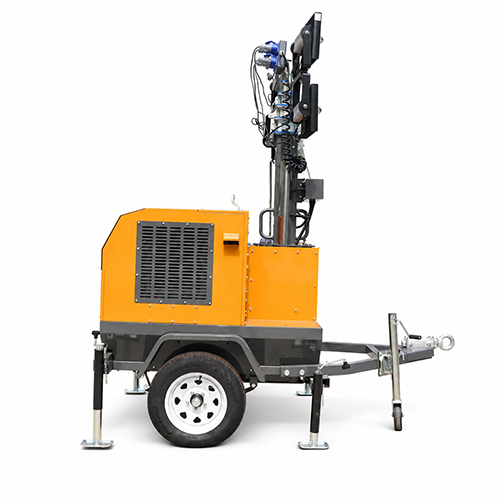

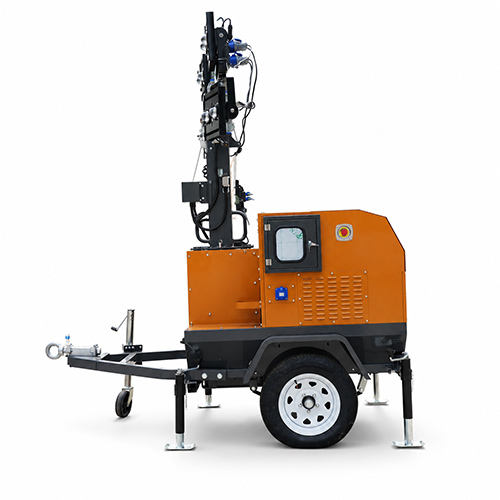

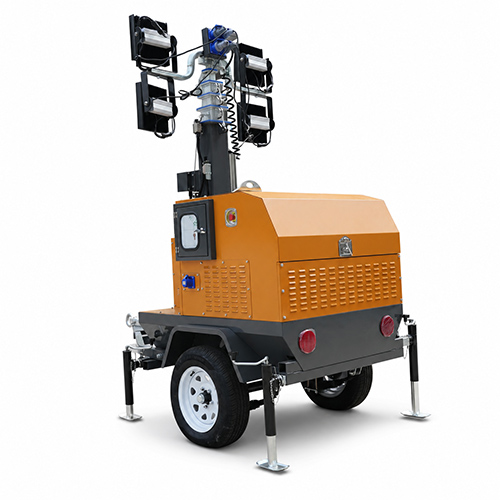

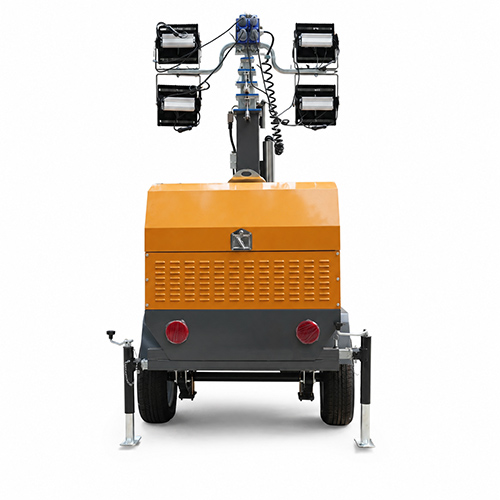

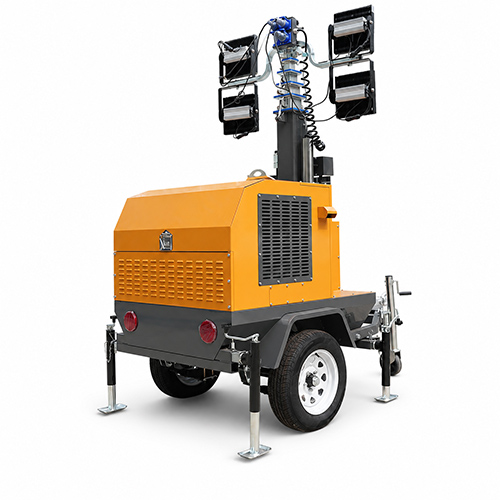

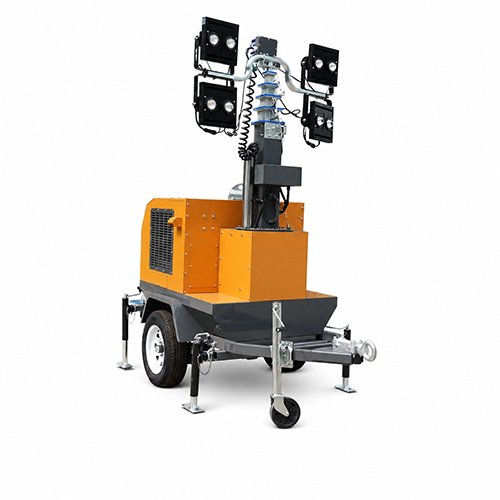

FEATURES
- Equipped with imported power assembly, guaranteed quality and outstanding performance
- Fitted with energy-saving LED lamps, featuring high luminous flux and long service life
- Intelligent unit control computer system with one-touch startup function
- 8-section galvanized lifting mast, anti-falling and corrosion-resistant
- Four wind-resistant hydraulic telescopic outriggers for stable support
- Self-locking lamp mast with 330° rotation angle, realizing wide-range and multi-directional illumination
- Max lifting height of 9 meters, electrically adjustable lighting angle for long irradiation distance
- Large-capacity fuel tank to support long endurance operation
| Item | Unit | Value |
|---|---|---|
| Overall Length (Mast Extended / Retracted) (L) | mm | 4100/3600 |
| Overall Width (Mast Extended / Retracted) (W) | mm | 2400/1670 |
| Overall Height (H) | mm | 2480 |
| Extended Lifting Height (HI) | m | 9 |
| Tire & Rim Size (WI) | inch | 14 |
| Item | Unit | Kubota/YANMAR | Changchai |
|---|---|---|---|
| Engine Brand | – | Kubota/YANMAR | Changchai |
| Engine Model | – | D1105/3TNV76 | 3M78/CZ380Q |
| Engine Type | – | 3-cylinder, water-cooled, 4-stroke | 3-cylinder, water-cooled, 4-stroke |
| Power Output | kw | 12.6/10.7 | 11.5/14.3 |
| Rated Speed | rpm | 1500 | 1500 |
| Lifting Mode | – | Hydraulic Lifting | Hydraulic Lifting |
| Air Intake Type | – | Naturally Aspirated | Naturally Aspirated |
| Emission Standard | – | Conventional Standard | Conventional Standard |
| Standard Generator | – | SPARKS | SPARKS |
| Rated Voltage (50/60Hz) | V | 230/240-120 | 230/240-120 |
| Motor Insulation Class | – | CLASS H | CLASS H |
| Motor Protection Class | – | IP65 | IP65 |
| Main Lamp Type | – | Metal Halide Lamp | LED Lamp |
| Lamp Power & Quantity | w | 1000×4 | 400×4 |
| Luminous Flux | lm | 440000 | 224000 |
| Mast Sections | Sections | 8 | 8 |
| Fuel Tank Capacity | L | 90 | 90 |
| Continuous Operation Time | h | 65 | 65 |
| Unit Starting System | – | Computerized Control Startup | Computerized Control Startup |
| Max. Wind Resistance Speed | m/s | 20 | 20 |
| Noise Level | dB | 72 at 7 Meters | 72 at 7 Meters |
| Suspension & Brake | – | Leaf Spring Suspension, Single Axle Without Brake | Leaf Spring Suspension, Single Axle Without Brake |
| Drawbar | – | With Retractable Adjustable Guide Wheel Lever | With Retractable Adjustable Guide Wheel Lever |
| Max. Extended Mast Height | m | 9 | 9 |
| Tire Size | inch | 14 | 14 |
| Maximum Towing Speed | km/h | 80 | 80 |
| Overall Length (Mast Extended / Retracted) | mm | 4100/3600 | 4100/3600 |
| Overall Width (Mast Extended / Retracted) | mm | 2400/1670 | 2400/1670 |
| Overall Height | mm | 2480 | 2480 |
| Total Weight | kg | 1360 | 1360 |
