Parameter
|
Item (Name)
|
Specification
|
Item (Name)
|
Specification
|
|---|---|---|---|
|

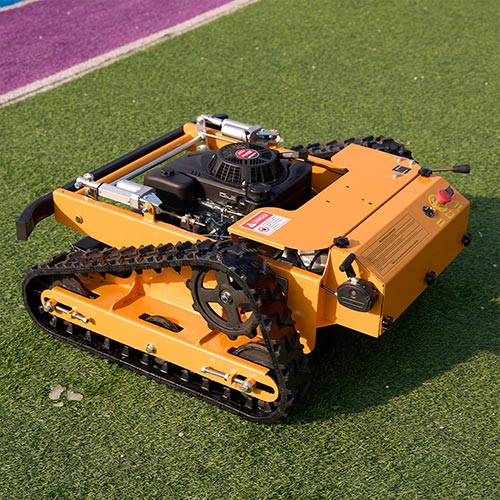

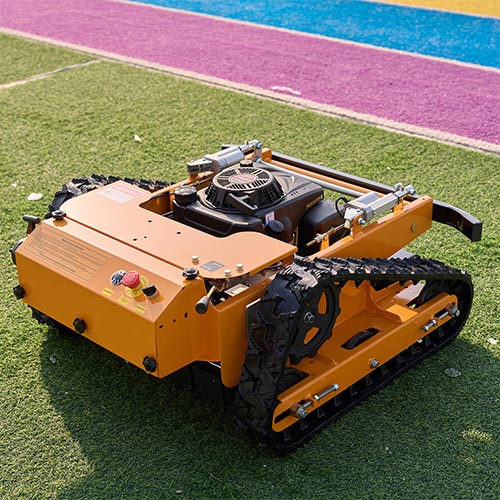

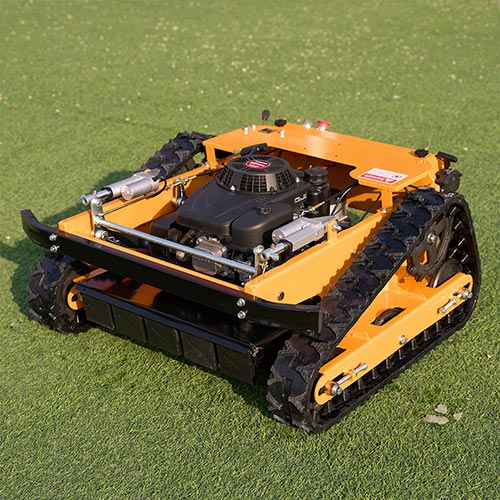

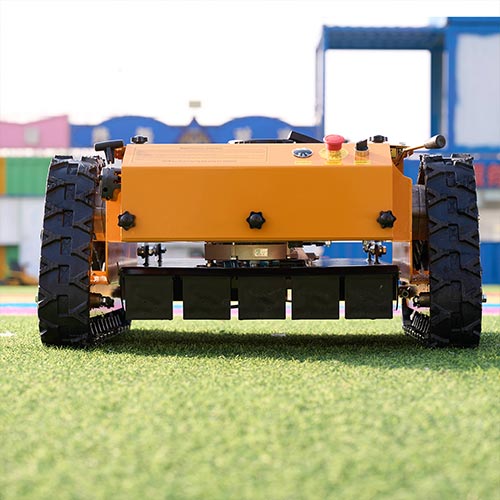

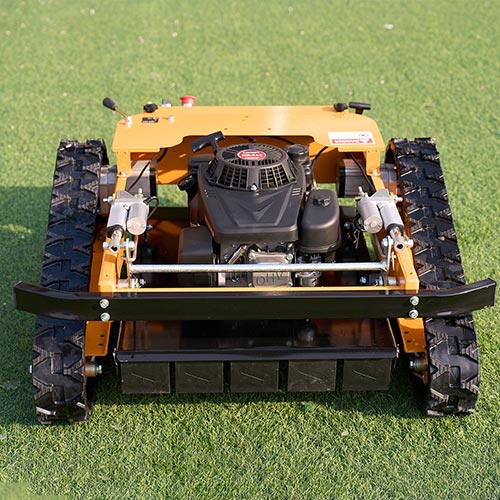

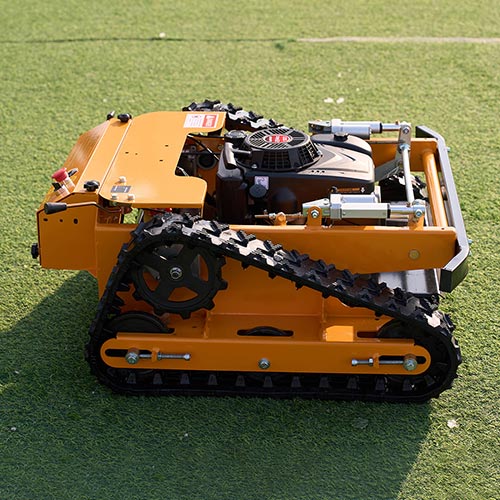

Model
|
MQR-540
|
Mower Dimensions
|
980 * 920 * 420 MM
|
|
Machine Weight
|
130 KG
|
Package Dimensions
|
1030 * 970 * 560 MM
|
|
Total Weight
|
160 KG
|
Mowing Width
|
540 MM
|
|
Mowing Height
|
30 – 150 MM
|
Operation Mode
|
Remote Control
|
|
Max Remote Distance
|
800 M
|
Start Mode
|
Manual / One-key / Remote Start
|
|
Travel Speed
|
0-6 km/h
|
Max Working Slope
|
45°
|
|
Controller
|
IC Integrated Circuit Controller
|
Power Supply
|
Oil-electric hybrid, Self-generating
|
|
Voltage
|
24V
|
Motor Type
|
350W Brushless Motor
|
|
Fuel Tank Capacity
|
1.4 L
|
Fuel Consumption
|
0.6 L/h
|
|
Blade Drive Method
|
Crankshaft
|
Blade Type
|
Straight double-edged blade
|
|
Number of Blades
|
2 pcs
|
Drive Type
|
Triangular steel track
|
Engine Specifications
|
Item (Name)
|
Specification
|
Item (Name)
|
Specification
|
|---|---|---|---|
|
Brand
|
Loncin / Yamaha / Kohler (Optional)
|
Rated Power
|
9HP / 7.5HP / 9HP (Optional)
|
|
Engine Type
|
4-Stroke
|
Displacement
|
224CC / 190CC / 224CC (Optional)
|
|
Emission Standard
|
EURO5 / EPA / JIS
|
Stable Performance
High-quality construction ensures reliable operation under all working conditions.
Powerful Digging Force
Strong hydraulic system delivers efficient excavation and high productivity.
Wide Model Range
From mini to heavy excavators, for landscaping, municipal, roadwork, mining, and large projects.
Flexible Attachments
Compatible with buckets, grapples, breakers, and other tools to handle diverse tasks.
Durable & Easy Maintenance
Modular design and robust components reduce downtime and maintenance costs.
Global Standards
Manufactured to meet international safety, quality, and performance standards.
faq
Do you offer customized excavators?
Yes. We offer customization options including configurations, attachments, colors, and selected technical specifications to meet different working conditions.
What quality standards do your excavators meet?
Our excavators are manufactured according to international standards and undergo strict inspection before shipment.
What is your typical delivery time?
Standard models are delivered according to the confirmed production schedule. Delivery time depends on order quantity and customization requirements.
Do you provide after-sales service and technical support?
Yes. We provide technical guidance, spare parts support, and after-sales service to ensure long-term machine performance.
What attachments are compatible with your excavators?
Available attachments include various buckets, hydraulic breakers, grapples, and other tools for different applications.
Which countries do you export to?
Our excavators are exported to many countries, including the USA, Canada, Germany, France, the UK, Italy, Chile, and Ecuador.
How can I choose the right excavator model?
You can share your working conditions, application requirements, and budget, and our team will recommend the most suitable model.
Are your excavators suitable for long working hours?
Yes. Our excavators are built with durable structures and stable hydraulic systems, making them suitable for long and intensive working hours.
